Product Highlights
- Designed for use with narrow kerf chain on chainsaws under 60 CC
- Narrow profile for high maneuverability. 1.75″ tip diameter (2.5″at widest point of bar)
- Available in .325″ pitch and 3/8″ low profile.
- Motor mounts available for most makes and models of chainsaws
- Precision squared and flame hardened rails for a long lasting bar
- Available in .050″ gauge
- Precision ground groove to 0.003″ for smooth, straight cutting

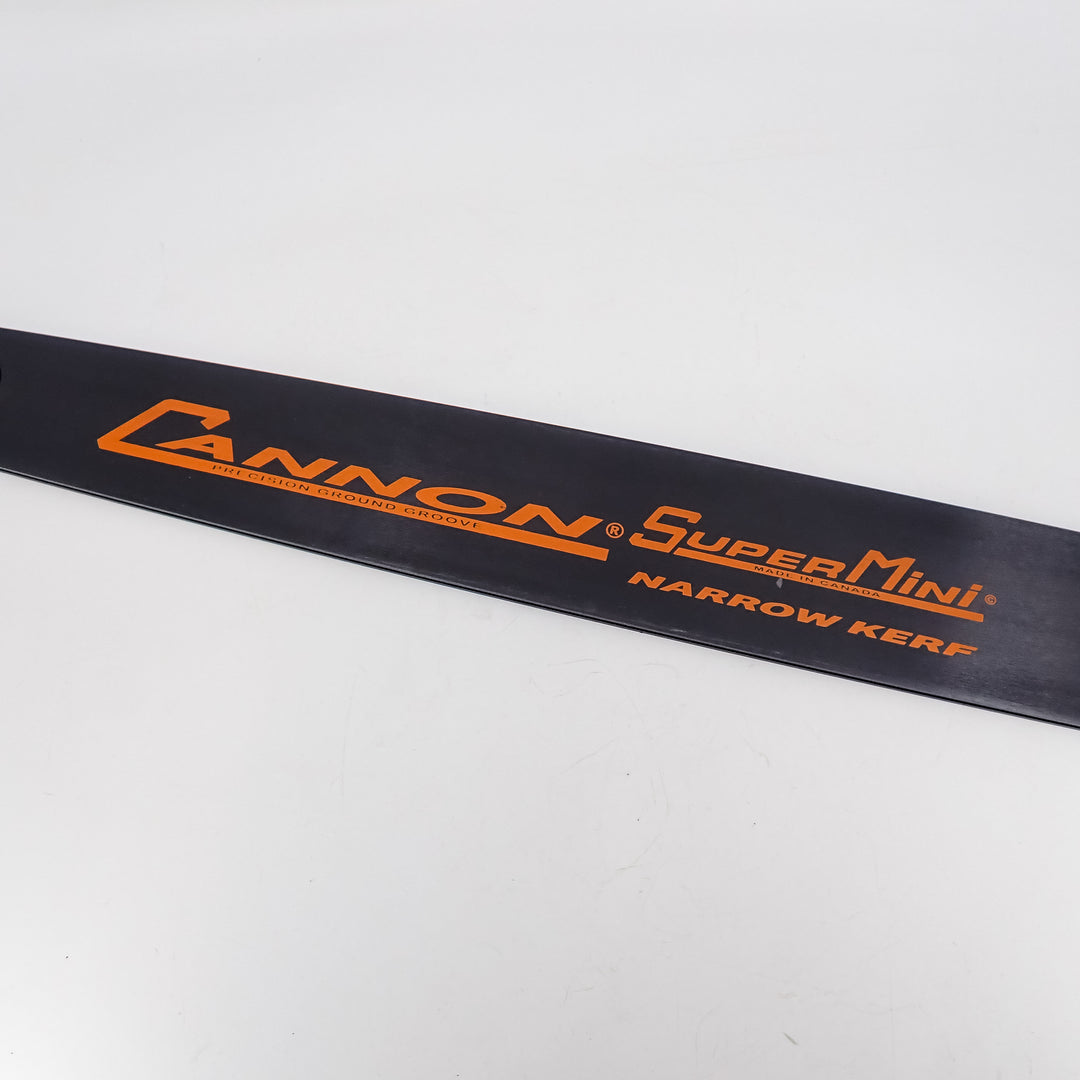

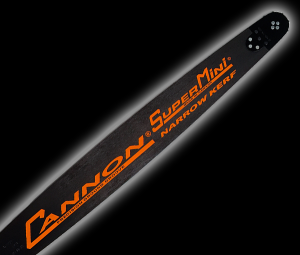

Cannon SuperMini Bars have a slender profile and mini sprocket nose, making them ideal chainsaw bars for log-home builders and arborists.
For bucking, limbing, building, carving, or trimming, Cannon SuperMini Bars will help you get the job done. These handcrafted professional bars enable the user to perform a wide range of tasks. SuperMini Bars are not recommended for making bore cuts.
A family of bar mounts is available to fit most saws, in 12″ and 32″ lengths. A hardnosed version is also available (CCA).
All Cannon SuperMini bars are skillfully hand made and put through rigorous quality assurance checks prior to packaging.
These bars are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground.
This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.
Precision squared and flame hardened rails allow for chain to run straight and true, enhancing the speed and smoothness of cut.
CHECK YOUR MOUNT, GAUGE AND PITCH TO MAKE SURE YOU HAVE THE PROPER FIT FOR YOUR MACHINE!
THE MOUNT AND THE CHAIN SPECIFICATIONS HAVE TO BE COMPATIBLE WITH YOUR MACHINE.
IT IS THE PURCHASERS RESPONSIBILITY TO ASCERTAIN IF THIS BAR AND CHAIN WILL FIT THEIR PARTICULAR MACHINE. YOU MUST NEED TO KNOW THE FOLLOWING IN ORDER TO GUARANTEE PROPER FITMENT:
BAR MOUNT PATTERN
PITCH
GAUGE
NUMBER OF DRIVE LINKS
CALLED LENGTH (14" 16" 18" ETC) IS NOT A PROPER INDICATOR OF CHAIN FITMENT.
THE SPECS ARE LISTED IN THE TITLE
IF YOU ARE UNSURE WE CAN HELP YOU DETERMINE THE PROPER SETUP YOU MAY NEED
C1/HUSQVARNA SMALL MOUNT/K095 MOUNT FITS:
Some of the machines below run 3/8 pitch and others run .325 pitch. First confirm your machine for bar mount pattern, then confirm chain pitch.
HUSQVARNA
154, 242, 246, 254, 254XP, 257, 261, 262, 262XP, 340, 345, 346, 350, 351, 355, 357, 357XP, 357XPG, 359, 359E-TECH, 360, 362, 362 XP, 40, 42, 455, 455 RANCHER, 455E RANCHER, 460, 460 RANCHER, 465 RANCHER, 466, 49, 51, 545, 55, 55 RANCHER, 550, 555, 560XP, 560XPG, 57
H1/HUSQVARNA LARGE MOUNT/D009 MOUNT FITS :
DOLMAR
PS-6400, PS-6400H, PS-6400W, PS-7300, PS-7300H, PS-7300W, PS-7310, PS-7310H, PS-7900, PS-7900H, PS-7900W, PS-7910, PS-7910H, PS-7910W, PS-7910XD, PS-9010, PS-9010FL, PS9000
HUSQVARNA
1100, 160, 162, 181, 185, 2100, 2101, 260, 266, 268, 272, 281, 285, 288, 288XP Lite, 298, 3120, 3120XP, 365, 371, 372, 372XP, 372XPG, 372XPW, 380, 385, 385XP, 385XPG, 385XPW, 390XP, 390XPG, 390XPW, 394, 394XP, 395, 395XP, 395XPG, 395XPW, 465 RANCHER, 480, 562XP, 562XPG, 565, 570, 572XP, 572XPG, 575XP, 575XPG, 575XPW, 576XP, 576XP Auto Tune, 576XPG, 576XPW, 61, 65, 66, 70, 77, JUNGLE 3120, L Series 585XP, 592XP
JONSERED
2065, 2065W, 2071, 2071W, 2077, 2083, 2083II, 2094, 2095, 2163, 2163 WH, 2165, 2171, 2171 WH, 2186, 2186 WH, 625, 625 LL, 630, 630 SUPER II, 630 Super, 630 West Coast, 670, 670 SUPER II, 670 West Coast, CS 2165, CS 2166, CS 2171, CS 2171WH, CS 2172, CS 2172WH, CS 2186, CS 2186WH, CS 2188
S1/3003/D025 MOUNT FITS:
Some of the machines below run 3/8 pitch and others run .325 pitch. First confirm your machine for bar mount pattern, then confirm chain pitch.
STIHL
026, 026 PRO, 026P, 028, 028 Super, 029, 030, 031, 032, 034, 034 SUPER, 036, 036 PRO, 036 QS, 036P, 038, 038 Super MAGNUM, 039, 039 SUPER MAGNUM, 040, 041, 042, 044, 044 MAGNUM, 044M, 045, 046, 046 MAGNUM, 046M, 048, 056, 056 SUPER, 056S, 064, 066, 066 MAGNUM, E15, E20, E220, E220Q, MS 260, MS 260 Pro, MS 261, MS 261 C-M, MS 261 C-MQ, MS 261 CQ, MS 270, MS 270 C, MS 270 C-B, MS 270 CQS, MS 290, MS 291, MS 291 C-BEQ, MS 310, MS 311, MS 341, MS 360, MS 360 C, MS 360 Pro, MS 360 QS, MS 361, MS 361 C-B, MS 361 QS, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 CQ, MS 362 RC-M, MS 390, MS 391, MS 440, MS 440 MAGNUM, MS 441, MS 441 ARCTIC, MS 441 C, MS 441 C-M, MS 441 C-MQ, MS 441 RC-M, MS 460, MS 460 MAGNUM, MS 461, MS 462, MS 500i, MS 650, MS 660, MS 660 MAGNUM, MS 661 C-M, MS 661 R C-M, MSE 200, MSE 220, MSE 220 Q, MSE 250 C
P4/D176 MOUNT FITS:
ECHO
CS-451, CS-451VL, CS-452, CS-452VL, CS-5001, CS-500EVL, CS-500VL, CS-501EVL, CS-510EVL, CS-550, CS-5500, CS-550EVL, CS-590, CS-60, CS-600, CS-600P, CS-601, CS-602, CS-602VL, CS-60S, CS-610, CS-610T, CS-620P, CS-620PW, CS-650, CS-650EVL, CS-660, CS-660EVL, CS-670, CS-6700, CS-6701, CS-6702, CS-680, CS-701, CS-702, CS-702VL, CS-706, CS-750, CS-750EVL, CS-8000, CS-8001, CS-800P, CST-610
MCCULLOCH
10-10A, 1000, 43840, 43871, 43900, 43931, 43961, 43992, 44022, 44114, 55, 555, 560, 570, 60, 605, 610, 620, 650, 655, 700, 805, 850, CP 70L, CP55, CP70, Double Eagle 50, Double Eagle 80, Eager Beaver 3.4, Eager Beaver 3.7, MAC 1-10, MAC 10-10, MAC 2-10A, MAC 2-10PS, MAC 3-10E, MAC 4-10, MAC 5-10, MAC SUPER 2-10A, Mac 3-10, Mac 6-10, PM 10-10A, PM 10-10S, PM 560, PM 7-10A, Pro Mac 55, Pro Mac 555, Pro Mac 570, Pro Mac 5700, Pro Mac 60, Pro Mac 605, Pro Mac 610, Pro Mac 650, Pro Mac 655, Pro Mac 700, Pro Mac 800, Pro Mac 8200, Pro Mac 850, SE 3.4, SE 3.7, SP 81E, Silver Eagle 3420, Silver Eagle 3720, Super Pro 60, Super Pro 70, Super Pro 80, Super Pro 81, Timber Bear, Titan 50, Titan 57, Titan 70
POULAN
203, 245, 306, 306 A, 3400, 360, 361, 3700, 375, 3800, 385, 3900, 395, 400, 4000, 4200, 4400, 446, 450, 4900, 5200, 5400, 5500, 6700
